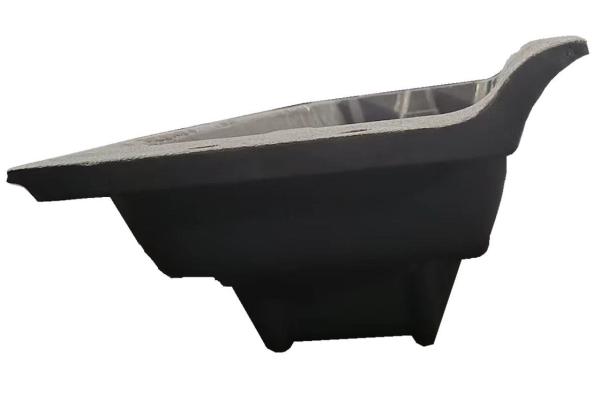

Custom Make Casting Graphite Iron Ingot Aluminum Mold

Ingot molds are used in the field of metallurgy and melting, in which liquid aluminum is solidified into aluminum ingots. Aluminum ingot mold is a relatively common product.

Quick Details

• Place of Origin: Shaanxi, China (Mainland)
• Brand Name: Zhongxing
• Model Number: According to your specifications!
• Application: Aluminum ingot casting
• Material: Heat-resistant alloy steel
• Dimensions: According to your specifications!!

1.Ductile cast pipe with high temperature resistance and good wear resistance.

2.It has the advantages of high temperature resistance, high wear resistance, sufficient strength and appropriate toughness, etc.
3.Used in stainless steel, high speed steel, high chromium alloy steel, molybdenum alloy, nickel alloy, ferrochrome, copper, anode copper and other industries

Company profile

Our company has more than 20 years’ experience on supplying moulds for casting of aluminium ingots and sows.

On the basis of American standards, our company has made appropriate adjustments to the chemical composition of steel. Add a certain amount of alloying elements. We have developed a company-specific chemical composition ratio that significantly improves the strength and elongation of the material and reduces the tendency to fatigue cracks. It makes the service life of the ingot mold significantly extended.

After continuous exploration, our company gradually adopts new technologies and develops new processes. This allows the quality of the product to remain stable and continuously improved.

Our company currently adopts V method casting process, which is vacuum solid casting. It can effectively improve the utilization rate of casting sand, shorten the production cycle, and improve the surface quality and dimensional accuracy of products. It also reduces the carbon footprint.

The quality of the ingot mold produced by our company meets the requirements of MT detection and UT detection.

Our company has a sound quality assurance system. We has passed ISO9001:2008 quality management system certification since 2010. The quality of the products produced is stable and reliable.

Advantage

• Long lifetime and reduced cost of ownership
• Design capabilities that meet customize
• Smooth surface & accurate dimension
• Resource saving
• Stable quality
• Use V-Process,can increase the modelling efficiency so that decreased the cycle time of manufacture,and get better surface accuracy.

Shaanxi Zhongxing Casting and Forging Co., Ltd is established in July 1997, which is a large private enterprise in northwest China specializing in producing alloy iron castings, steel castings and ductile iron castings. Our company covers an area of nearly 35000 square meters, with a 12000 square meters main workshop. Our company is able to produce more than 800 tons molten steel and 500 tons castings per month. Our products mainly export to North American, Western Europe, Mid East, etc. Our company has got ISO9001:2008 quality management system certification in July 2010.

Our company has a series of the necessary manufacturing equipment for Smelting, Molding, Heat treating, Testing and Cleaning.

Smelting equipment: one 3-ton intermediate frequency furnace, two 2-ton intermediate frequency furnaces.

Molding equipment: two stations “V-process” molding machine with filming machine, drying machine, sands filling machine and vibration table, “V-process” molding flask, “V-process” vacuum system.

Heat treatment equipment: two heat treatment furnaces with auto-tilting cart, one type of P103-480-1, the effective area is 3600 × 2000 × 2000, one type of RT-220-12, the effective area is 2500 × 1500 × 550, and a quenching pool with 6m × 4m × 6m.

Testing equipment: Oxford direct-reading spectrometer, casting sand tester, arc carbon meter, hardness tester, ultrasonic testing detector, etc.

Machining equipment: 130 boring machine, 4M milling machine, 5M Horizontal Lathe, 80 radial drilling machine, etc.

Cleaning equipment: a shot blasting machine with 10 tons hoisting hook.

Our products are mainly used in aluminum industry such as ingot mold, sow mold, dross pan, etc. The main materials are ASTM A217 series and AISI 8630 series. Other products are also used in smelting industry, hydraulic power industry such as stainless steel turbine or blade, wind power industry such as wind turbine hub, thermal power industry such as valve body and shell, mechanical industry, mining industry, oil industry such as pump, gear, box, etc.

There are almost 150 people work in our company, including 2 casting senior engineers, 2 smelting senior engineers, 3 casting engineers, 3 smelting engineers, 3 economists and 3 accountants and so on. Most of our engineers have more than 25 years working experience. 80% of our front-line workers have worked in our company for more than 9 years.

Regarding honesty and innovation as the basis just as usual, Shaanxi Zhongxing Casting and Forging Co., Ltd will try the best to improve ourselves to offer better service and products! We sincerely hope to create a win-win relationship with you in the near future!
